For more than ten years, Anaergia Technologies has been developing and manufacturing filter screw press (FSP) separators that provide consistently high separation and throughput performance with a very long service life. Additionally, with high quality standards and innovative detailed solutions, there is a very low maintenance requirement for the unit. With our wide range of models, we can go over your individual requirements and offer you a solution that best suits your application, whether for agriculture or industry.
Separator FSP
Maximize separation rates with intelligent technology
Benefits at a glance
Separator FSP Features
Uncompromising quality
The foldable quick-release press housing offers quick access to the screen and screw, while the inspection openings in the inlet and screen housing make cleaning and maintenance work quick and easy. The screw press used in our separators has tungsten carbide cladding. This makes it extremely hard, precise and wear-resistant. The fibre cutting function upstream from the screen area ensures that long fibrous materials are unable to cause clogging.
A unique technology
Product features of our separators
Separation of filter and press area
- Maximization of capacity
- Minimization of wear
- Prevention of screen damage

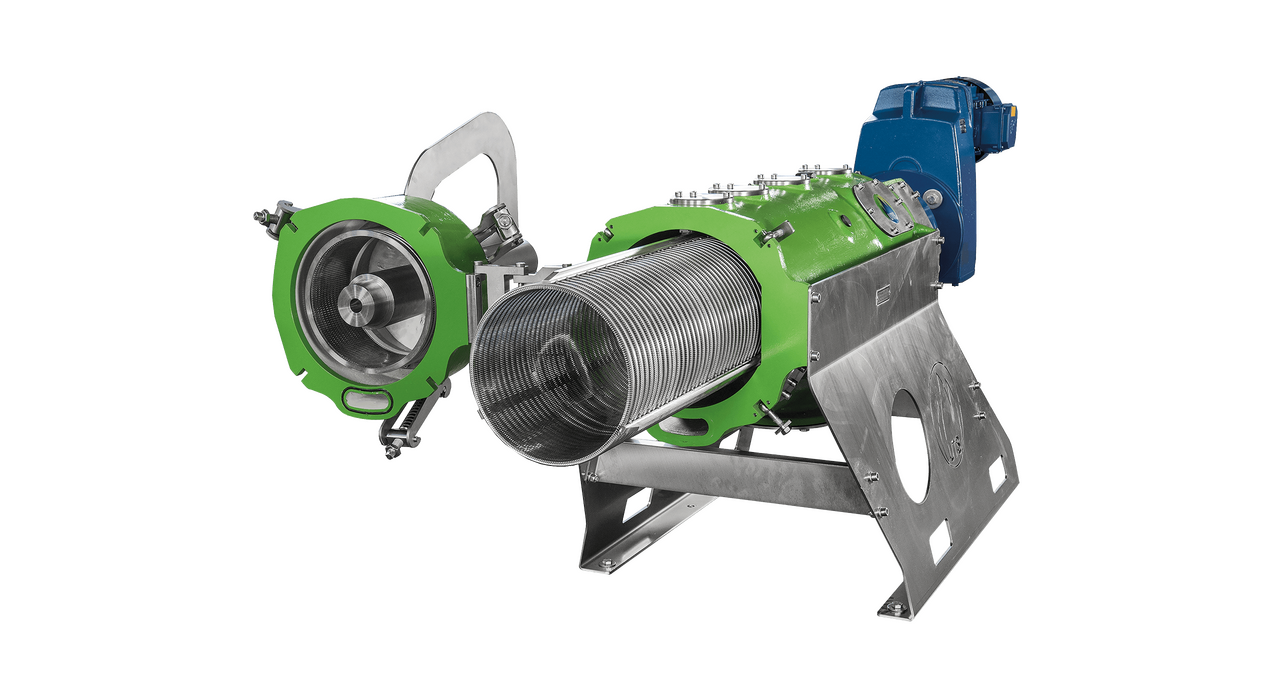

Folding press housing
- Quick access to the screen and screw
- Without excessive physical effort
Screw press with tungsten carbide cladding
- Stability
- Maximum precision
- Extremely high wear resistance

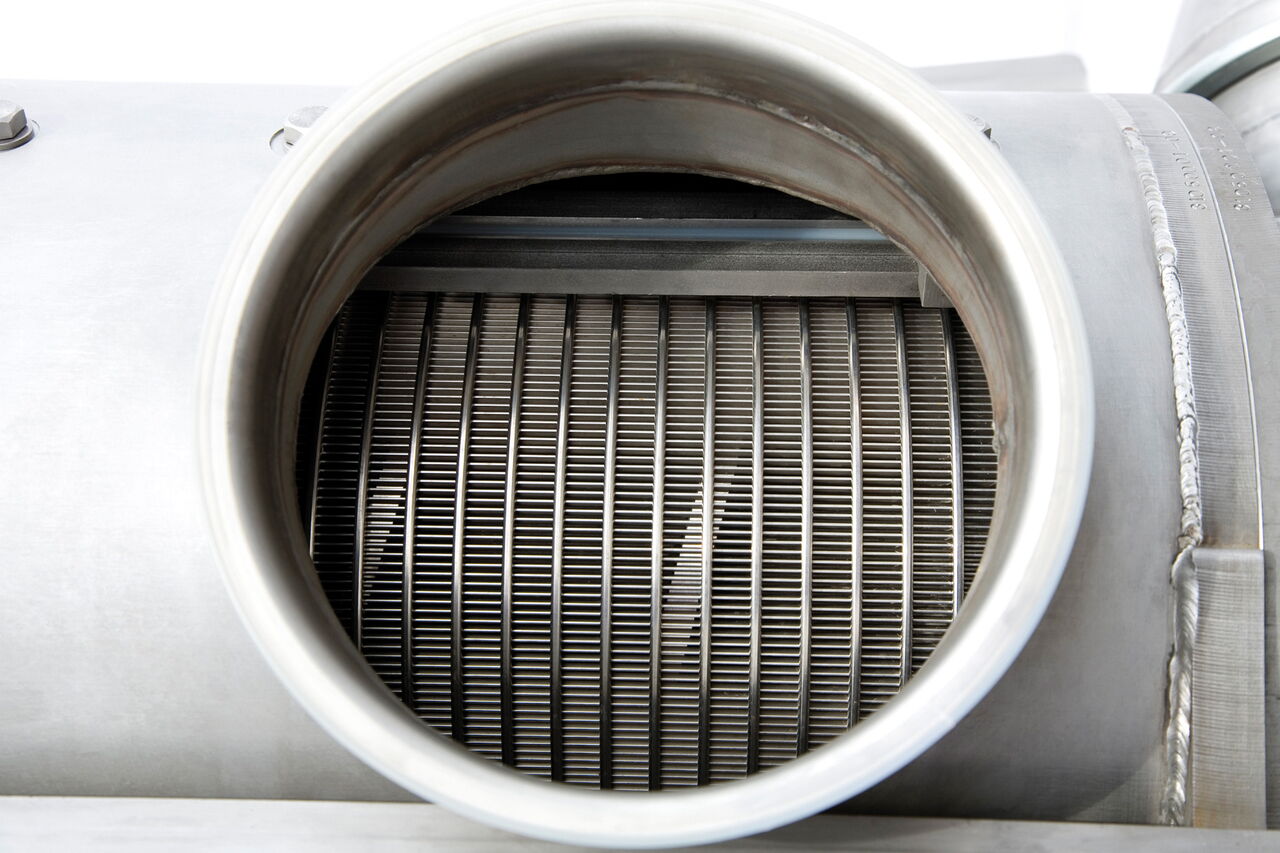

Inspection openings in the inlet and screen housing
- Quick access to the screen surface
- Screw connection with disassembly of the supply line
Drive adapter with slide ring seal and sealed chamber
No gear damage due to penetration of water or application of axial forces
Fibre cutting function before entry into the screen region
No clogging due to long fibrous material
Areas of application for our separators
FSP A Separator
Stainless steel separator series for industry and high-performance agriculture
- Paper, pulp and wood-processing industry (e.g. MDF):
Dewatering of pulp, rejected fine mateiral and fibrous sludges, as well as fibre extraction from wastewater and process water - Food industry:
Fruit and vegetable processing, dewatering of distiller’s wash and mash, wastewater and waste treatment - Meat processing industry:
Slaughter waste, stomach and intestinal content, wastewater - Recycling of plastics:
Separation of waste, cleaning of wastewater and circulation water
FSP B Separator
Attractive, affordable version made of cast iron particularly for agricultural applications
- Separation of cattle, pig and poultry liquid manure
- Separation of digestate from biogas plants to reduce the storage volume (10-30%)
- Separator as a first step in a complete digestate processing plant
Bedding Separators
Series of especially powerful separators to produce bedding material for dairy farming
- Cost-effective in-house production of dry bedding material from cattle manure
- Increased lying comfort and better udder health
- Easier distribution of separated manure (liquid phase) and increased capacity in the manure storage
| Model range | Values dependent on the input | |||
|---|---|---|---|---|
| FSP Model | Digestate / Cattle Manure | Liquid Pig Manure | ||
| Throughput | Total Solids (%) | Throughput | Total Solids (%) | |
| FSP A & B-52/10 | 10-25m³/h | 22-25% | 18-30m³/h | 25-35% |
| FSP A & B-52/15 | 10-25m³/h | 22-28% | 18-30m³/h | 25-40% |
| FSP A & B-78/10 | 15-35m³/h | 22-25% | 25-45m³/h | 25-35% |
| FSP A & B-78/15 | 15-35m³/h | 22-28% | 25-45m³/h | 25-40% |
| FSP A-104/15 | 25-45m³/h | 22-28% | 35-60m³/h | 25-40% |
| FSP A & B-52/15 Bedding | 5-10m³/h | 30-35% | ||
| FSP A & B-78/15 Bedding | 8-15m³/h | 33-40% | ||
Need more information?
We are happy to provide an individual design for your project through the use of a mass, nutrient, and cost balance. Upon request, we can also take care of the complete separator installation for you, including the platform, control unit, pipeline installation, pumps, fittings and sensors.
