PLATEO

Next-generation coarse screening

The PLATEO series of screens is versatile and separates recycable materials with cut sizes between 50 and 250mm. A torque limiter integrated in each shaft actively prevents blockages and material ragging. Measured on a bulk density of 350kg/m3, the PLATEO screen series delivers outputs in excess of 60t/h.

Benefits at a glance

Robust

Torque limiters on each shaft reduce the risk of damage to the motor, gears and shafts

Efficient

Increased capacity and separation quality with active prevention of material ragging and blockage

Intelligent

Simple adaptation of the cut size/accuracy by replacing the shaft sleeves and adjusting the speed

Safe

Overhead chain block for safe and simple maintenance

PLATEO Features

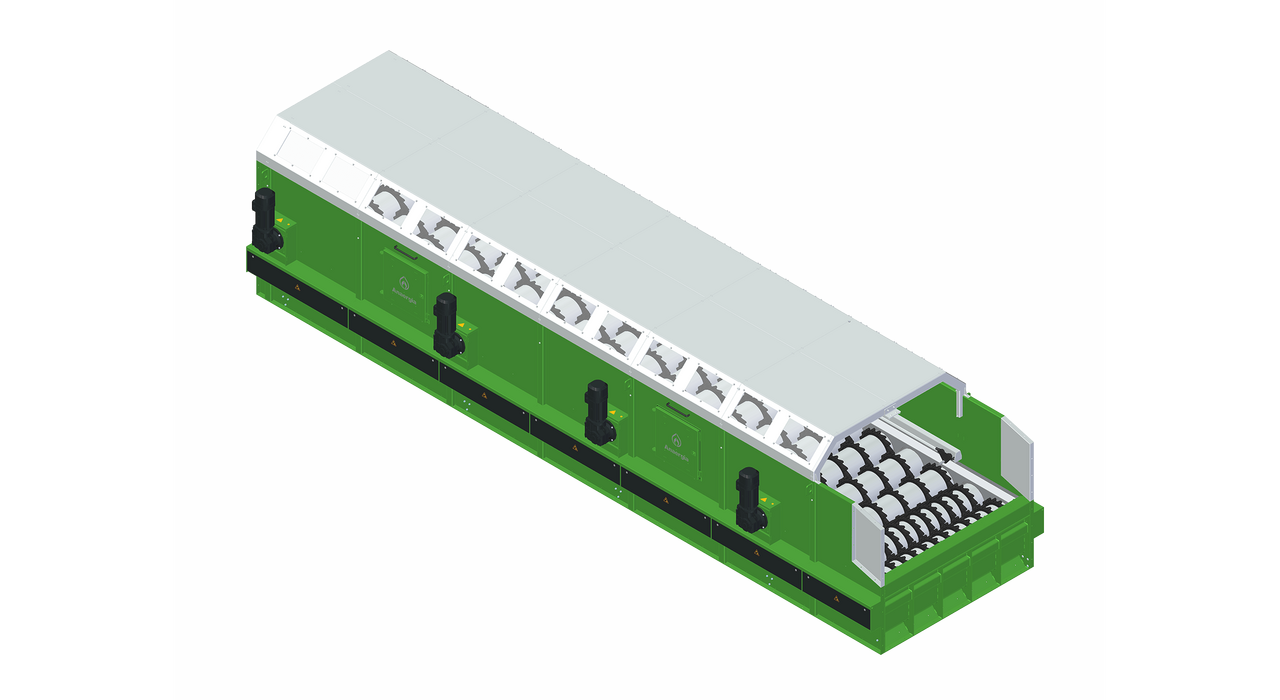

Schaubild PLATEO - Siebtechnik

Coarse fraction discharge

Drive

Fine fraction discharge

Screen deck

Inlet

Crane track

Cover

Reliable. In every situation.

PLATEO screens will not let you down. Whether it is used for household waste, industrial/commercial waste or organic and biological waste: PLATEO provides perfect separation results with maximum safety and efficiency.

Plateo
Plateo

What makes our PLATEO screens unique

  • Large shaft diameter for maximum stability of the screen deck
  • Wide range of different shaft sleeves for simple adaptation of the cut size
  • Quick-change couplings on the shafts enable shaft replacement without disassembling gears and drives
  • Encapsulated design for maximum safety
  • Simple adjustment of the speed with regulation of frequency
  • Low-wear machine with optimal accessibility for maintenance work
  • Energy-efficient operation with high-quality drives, and maximum installed drive power of 4 x 5.5kW
Plateo
Plateo

Why PLATEO is the right screen for you

  • Optimal adaptability to the material parameters provides the purest screen fractions
  • With the continuous feed of the output material, sorting results can be improved for the long-term
  • Low operating costs due to reduced wear and efficient drives
  • Minimum plant downtime due to active prevention of material ragging and blockage
  • Easy handling and convenient access to all key components significantly reduces maintenance and cleaning work
